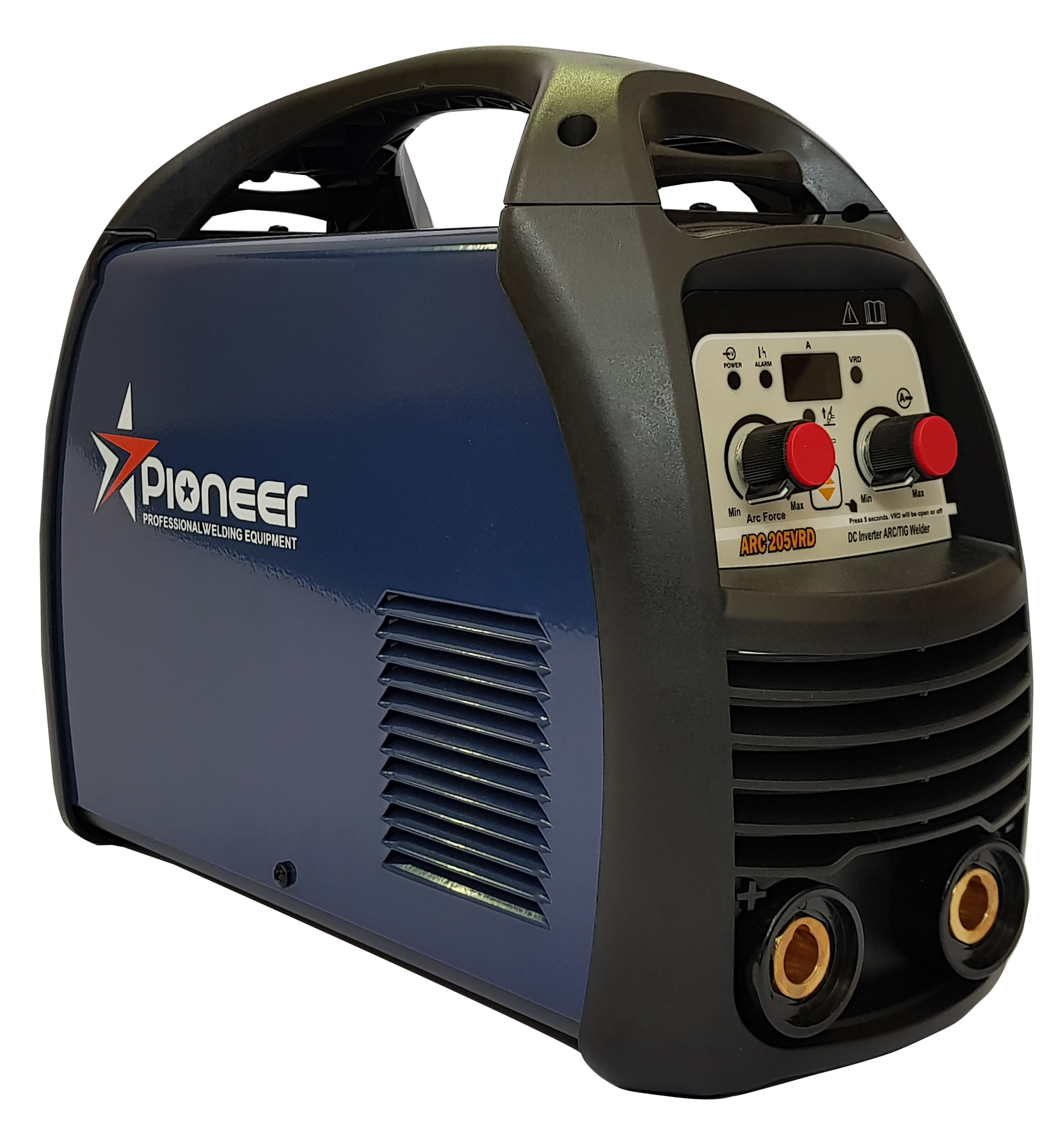

PIONEER ARC 200 VRD

• Portable IGBT Inverter stick welder
• Power Indicator
• Thermal Protection
• Stepless current setting
• Hot Start
• VRD
• ARC force
• Available for Rutile and Basic electrode
• Lift ARC TIG
• Digital Display
• Generator Friendly

ACCESSORIES:
• Welding cable with electrode holder;
• Earth cable with Earth clamp
• CCA Cable 16mm2
• 35-50 dinse connector

Pioneer Model: ARC200 VRD

Power Supply (V/HZ): 1-ph-220V 50/60Hz

Input Current (A): 19.4A (20 degree)
                               11.2A (40 degree)

Output Current (A):  20-200A

OCV (V): 69V

Rated Output (% at A):  60% at 160A at
                                         20 degrees
                                         30% at 200A at
                                         40 degrees

Electrode/Wire diameter (mm): 2.0-5.0mm
